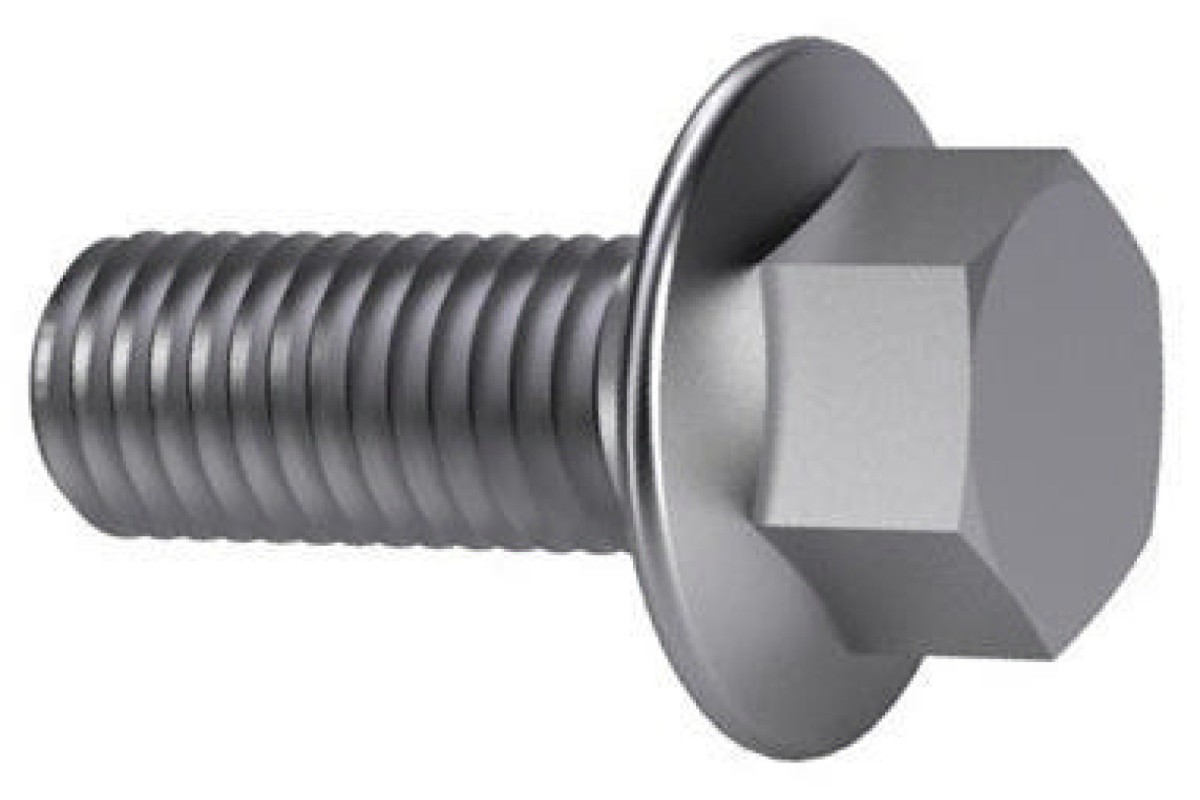

M8 X 25MM FLANGE HEX SCREW (8.8) (ZINC) (FT)

Sorry this item is only available to purchase in-store

Diameter (d-D)	M8
Length (L) (mm)	25
Class	8.8
Material	Steel
Surface treatment	Zinc plated
Head shape	Hexagon head
Driving features	Hexagon
Thread direction	Right
Thread	Metric thread
Info	Specific features of hexagon bolts with flange: The flange enables built up forces under the bolt head to be spread over a larger area, consequently resulting in lower surface pressure. Large (oversized) holes and/or tooling holes can be covered by the flange. Washers are not necessary.

Dimensions
